The Object class implements manipulation with Instance interface class and its inheritors. More...

#include <Object.h>

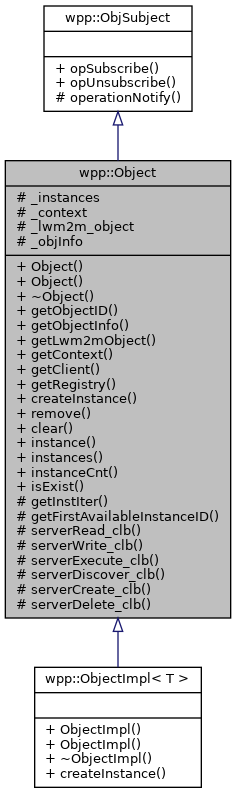

Inheritance diagram for wpp::Object:

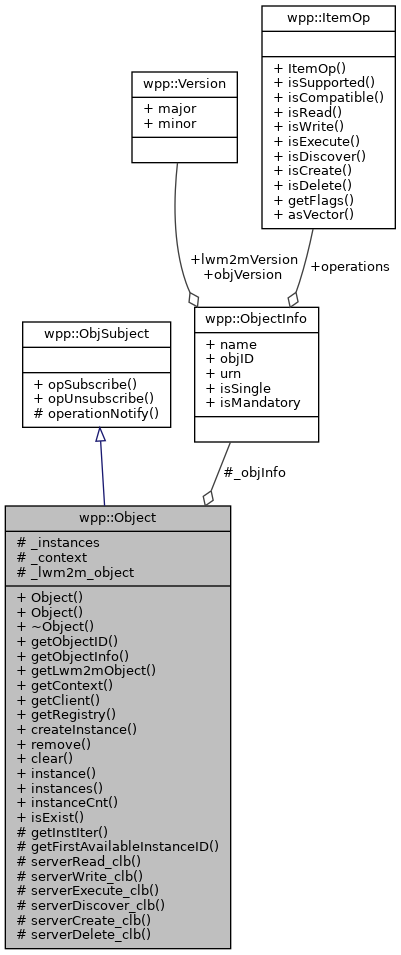

Collaboration diagram for wpp::Object:

Public Member Functions
	Object (lwm2m_context_t &context)

	Object (lwm2m_context_t &context, const ObjectInfo &info)
	Constructs an Object instance. More...

virtual	~Object ()
	Destroys the Object instance. More...

OBJ_ID	getObjectID () const
	Gets the object ID. More...

const ObjectInfo &	getObjectInfo () const
	Gets the object information. More...

lwm2m_object_t &	getLwm2mObject ()
	Gets the lwm2m_object_t object. More...

lwm2m_context_t &	getContext ()
	Return context that can be used by derived class. More...

WppClient &	getClient ()
	Helpfull methods to get client instances. More...

WppRegistry &	getRegistry ()
	Helpfull methods to get registry instances. More...

virtual Instance *	createInstance (ID_T instanceID=ID_T_MAX_VAL)=0
	Creates an instance of the object. More...

bool	remove (ID_T instanceID)
	Removes an instance of the object. More...

void	clear ()
	Clears the object. More...

Instance *	instance (ID_T instanceID=ID_T_MAX_VAL)
	Gets an instance of the object. More...

const std::vector< Instance * > &	instances ()
	Gets all instances of the object. More...

size_t	instanceCnt ()
	Gets the number of instances of the object. More...

bool	isExist (ID_T instanceID)
	Checks if an instance exists. More...

Public Member Functions inherited from wpp::ObjSubject
void	opSubscribe (ObjOpObserver *observer)
	Subscribes an observer to receive notifications about object operations. More...

void	opUnsubscribe (ObjOpObserver *observer)
	Unsubscribes an observer from receiving notifications about object operations. More...

Protected Member Functions
std::vector< Instance * >::iterator	getInstIter (ID_T instanceID)
	Gets the iterator to the instance. More...

ID_T	getFirstAvailableInstanceID ()
	Gets the first available instance ID. More...

Protected Member Functions inherited from wpp::ObjSubject
void	operationNotify (Object &obj, ID_T instanceId, ItemOp::TYPE type)
	Notifies observers about object operations. More...

Static Protected Member Functions
static uint8_t	serverRead_clb (lwm2m_context_t contextP, lwm2m_server_t server, ID_T instanceId, int numDataP, lwm2m_data_t dataArrayP, lwm2m_object_t objectP)
	The read callback function for the Lwm2m core. More...

static uint8_t	serverWrite_clb (lwm2m_context_t contextP, lwm2m_server_t server, ID_T instanceId, int numData, lwm2m_data_t dataArray, lwm2m_object_t objectP, lwm2m_write_type_t writeType)
	The write callback function for the Lwm2m core. More...

static uint8_t	serverExecute_clb (lwm2m_context_t contextP, lwm2m_server_t server, ID_T instanceId, ID_T resId, uint8_t buffer, int length, lwm2m_object_t objectP)
	The execute callback function for the Lwm2m core. More...

static uint8_t	serverDiscover_clb (lwm2m_context_t contextP, lwm2m_server_t server, ID_T instanceId, int numDataP, lwm2m_data_t dataArrayP, lwm2m_object_t objectP)
	The discover callback function for the Lwm2m core. More...

static uint8_t	serverCreate_clb (lwm2m_context_t contextP, lwm2m_server_t server, ID_T instanceId, int numData, lwm2m_data_t dataArray, lwm2m_object_t objectP)
	The create callback function for the Lwm2m core. More...

static uint8_t	serverDelete_clb (lwm2m_context_t contextP, lwm2m_server_t server, ID_T instanceId, lwm2m_object_t *objectP)
	The delete callback function for the Lwm2m core. More...

Protected Attributes
std::vector< Instance * >	_instances

lwm2m_context_t &	_context

lwm2m_object_t	_lwm2m_object

ObjectInfo	_objInfo

Detailed Description

The Object class implements manipulation with Instance interface class and its inheritors.

The main target of this class is to encapsulate operations like instance create and delete, binding instance callbacks to the core interface, to avoid multiple definitions of this mechanism in instance implementation classes.

Definition at line 32 of file Object.h.

Constructor & Destructor Documentation

◆ Object() [1/2]

wpp::Object::Object ( lwm2m_context_t & context )

Default constructor.

Definition at line 6 of file Object.cpp.

◆ Object() [2/2]

wpp::Object::Object	(	lwm2m_context_t &	context,
		const ObjectInfo &	info
	)

Constructs an Object instance.

Parameters

context	The lwm2m_context_t object.
info	The ObjectInfo object.

Definition at line 8 of file Object.cpp.

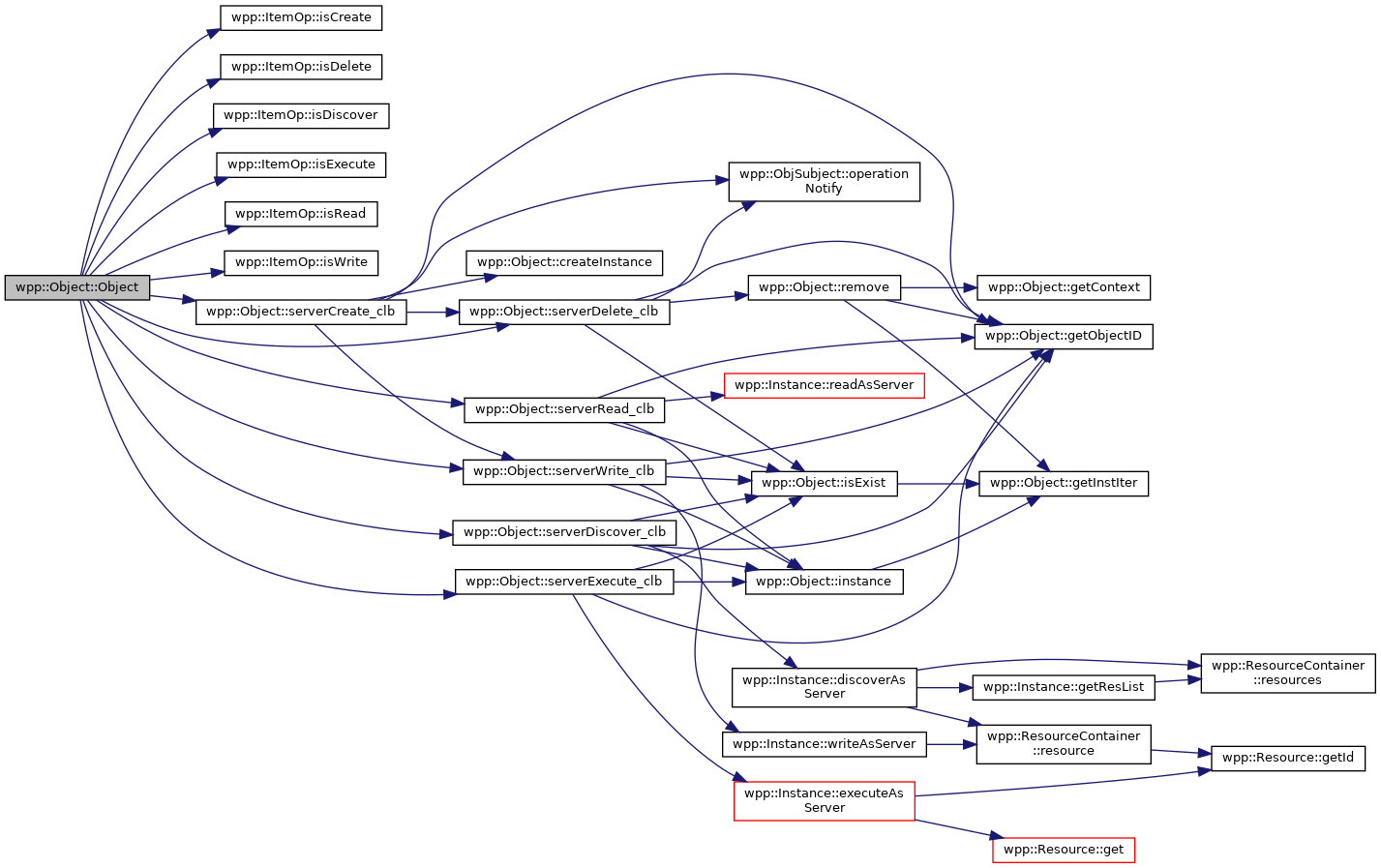

Here is the call graph for this function:

◆ ~Object()

wpp::Object::~Object ( )

virtual

Destroys the Object instance.

Definition at line 32 of file Object.cpp.

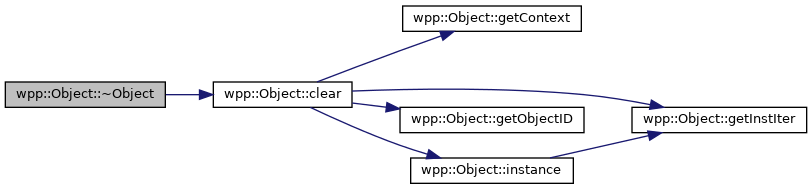

Here is the call graph for this function:

Member Function Documentation

◆ clear()

void wpp::Object::clear ( )

Clears the object.

Definition at line 61 of file Object.cpp.

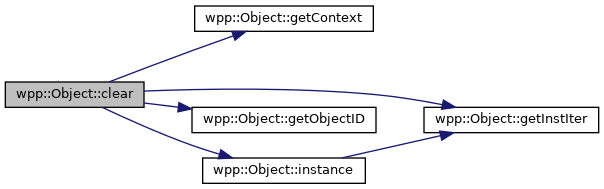

Here is the call graph for this function:

Here is the caller graph for this function:

◆ createInstance()

virtual Instance* wpp::Object::createInstance ( ID_T instanceID = ID_T_MAX_VAL )

pure virtual

Creates an instance of the object.

Parameters

instanceID The instance ID.

Returns: A pointer to the created Instance object.

Implemented in wpp::ObjectImpl< T >.

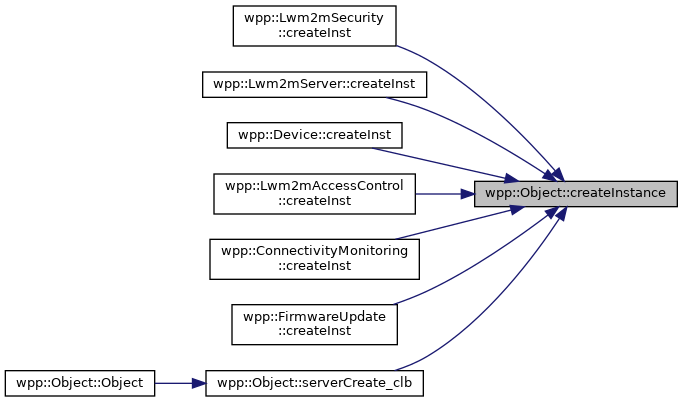

Here is the caller graph for this function:

◆ getClient()

WppClient & wpp::Object::getClient ( )

Helpfull methods to get client instances.

Definition at line 53 of file Object.cpp.

Here is the call graph for this function:

◆ getContext()

lwm2m_context_t & wpp::Object::getContext ( )

Return context that can be used by derived class.

Definition at line 49 of file Object.cpp.

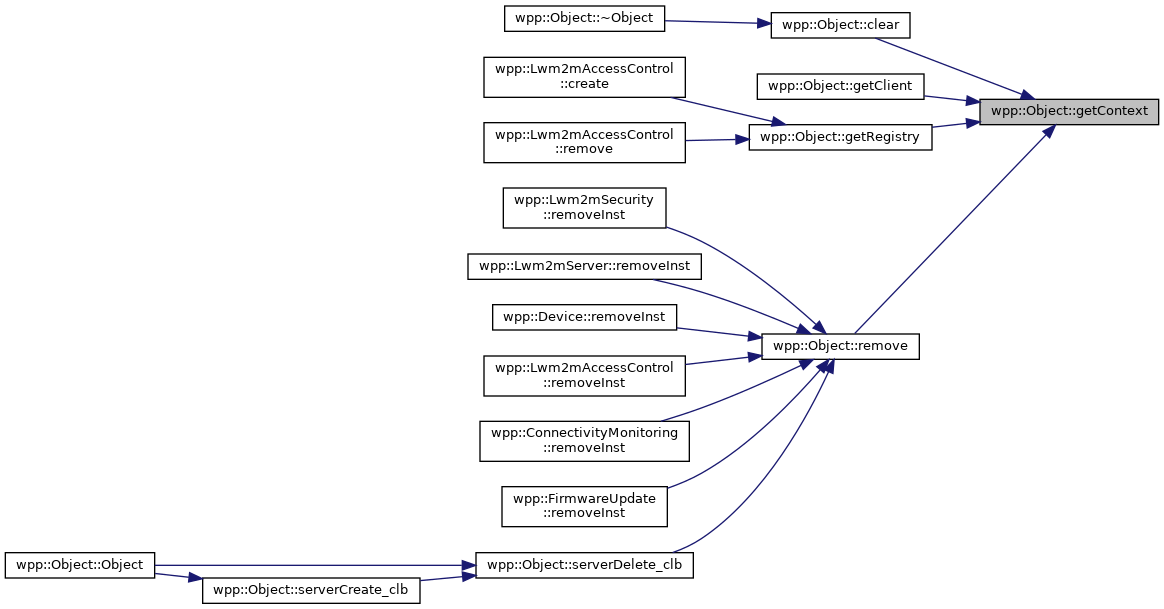

Here is the caller graph for this function:

◆ getFirstAvailableInstanceID()

ID_T wpp::Object::getFirstAvailableInstanceID ( )

protected

Gets the first available instance ID.

Returns: The first available instance ID.

Definition at line 125 of file Object.cpp.

Here is the call graph for this function:

◆ getInstIter()

std::vector< Instance * >::iterator wpp::Object::getInstIter ( ID_T instanceID )

protected

Gets the iterator to the instance.

Parameters

instanceID The instance ID.

Returns: The iterator to the instance.

Definition at line 120 of file Object.cpp.

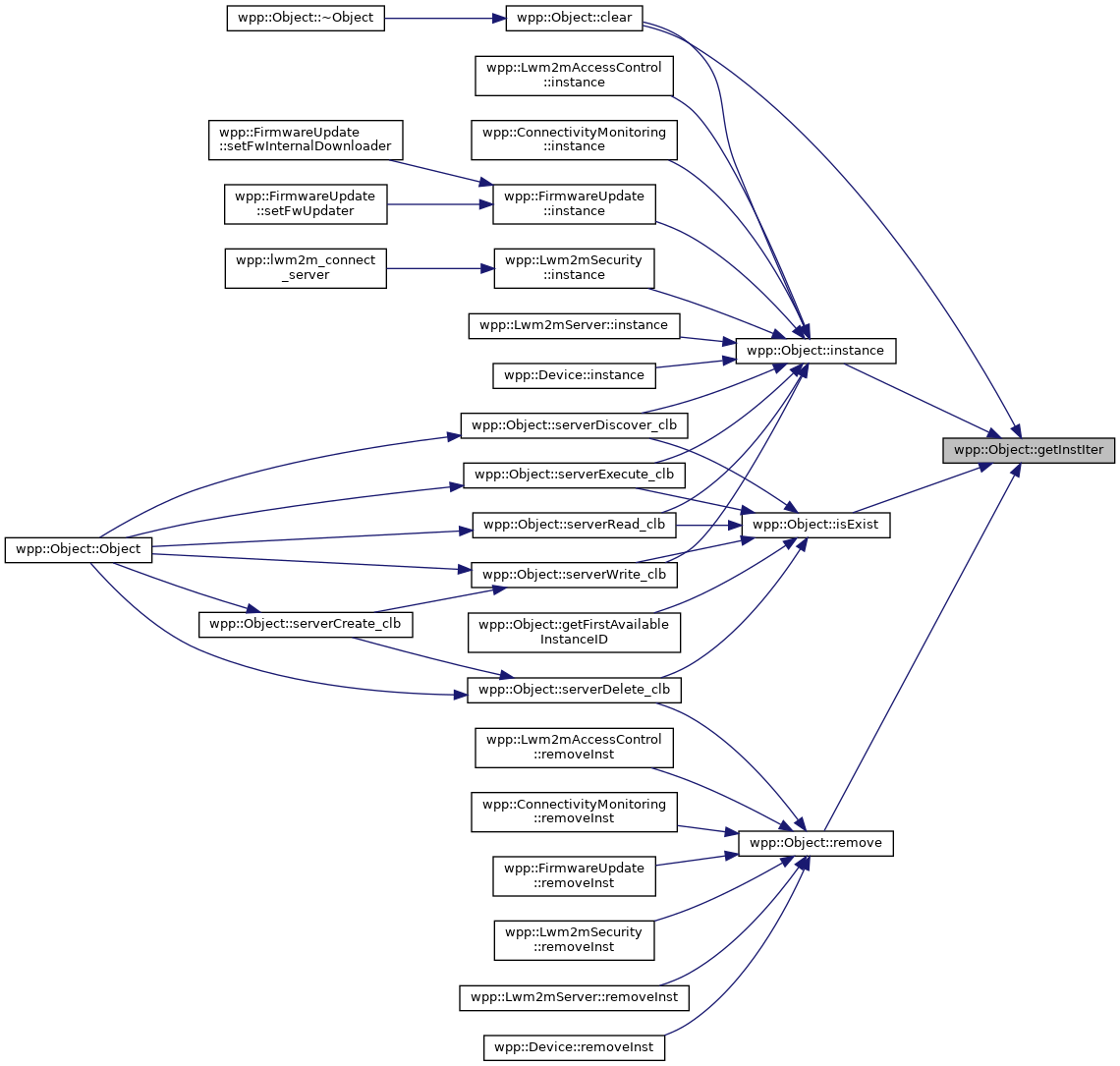

Here is the caller graph for this function:

◆ getLwm2mObject()

lwm2m_object_t & wpp::Object::getLwm2mObject ( )

Gets the lwm2m_object_t object.

Returns: The lwm2m_object_t object.

Definition at line 41 of file Object.cpp.

◆ getObjectID()

OBJ_ID wpp::Object::getObjectID ( ) const

Gets the object ID.

Returns: The object ID.

Definition at line 37 of file Object.cpp.

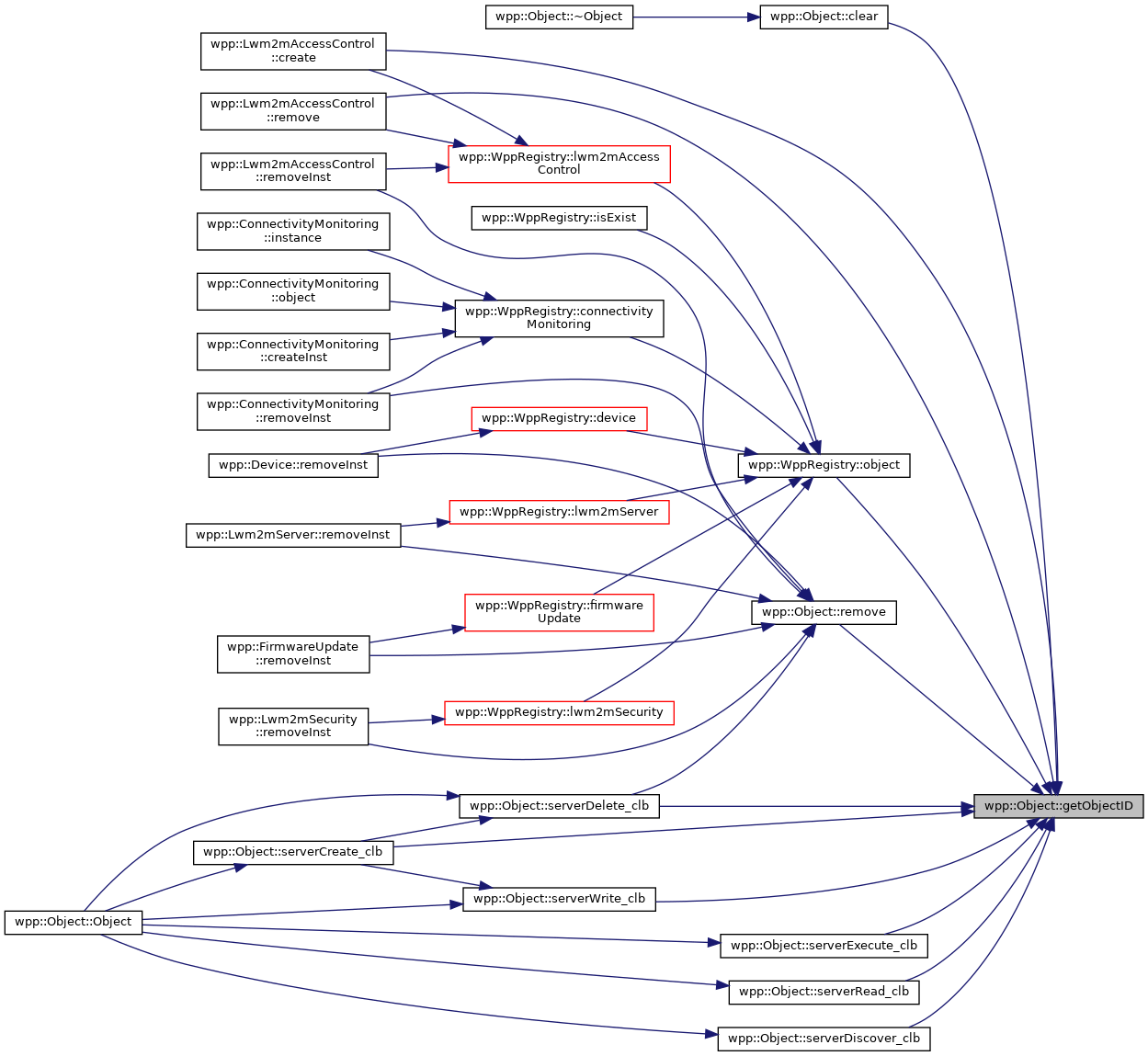

Here is the caller graph for this function:

◆ getObjectInfo()

const ObjectInfo & wpp::Object::getObjectInfo ( ) const

Gets the object information.

Returns: The ObjectInfo object.

Definition at line 45 of file Object.cpp.

◆ getRegistry()

WppRegistry & wpp::Object::getRegistry ( )

Helpfull methods to get registry instances.

Definition at line 57 of file Object.cpp.

Here is the call graph for this function:

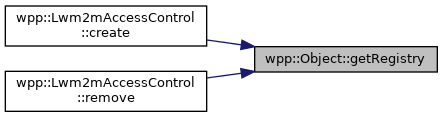

Here is the caller graph for this function:

◆ instance()

Instance * wpp::Object::instance ( ID_T instanceID = ID_T_MAX_VAL )

Gets an instance of the object.

Parameters

instanceID The instance ID. If not provided, the first available instance is returned.

Returns: A pointer to the Instance object or NULL.

Definition at line 102 of file Object.cpp.

Here is the call graph for this function:

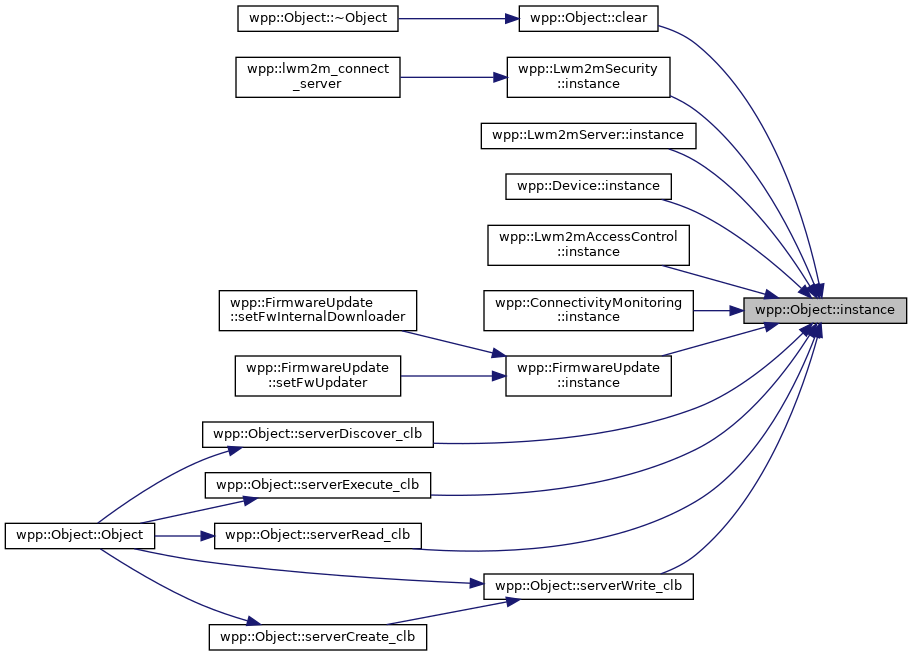

Here is the caller graph for this function:

◆ instanceCnt()

size_t wpp::Object::instanceCnt ( )

Gets the number of instances of the object.

Returns: The number of instances.

Definition at line 112 of file Object.cpp.

◆ instances()

const std::vector< Instance * > & wpp::Object::instances ( )

Gets all instances of the object.

Returns: A vector of pointers to the Instance objects.

Definition at line 108 of file Object.cpp.

◆ isExist()

bool wpp::Object::isExist ( ID_T instanceID )

Checks if an instance exists.

Parameters

instanceID The instance ID.

Returns: True if the instance exists, false otherwise.

Definition at line 116 of file Object.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ remove()

bool wpp::Object::remove ( ID_T instanceID )

Removes an instance of the object.

Parameters

instanceID The instance ID.

Returns: True if the instance was successfully removed, false otherwise.

Definition at line 82 of file Object.cpp.

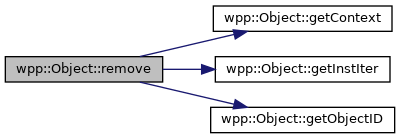

Here is the call graph for this function:

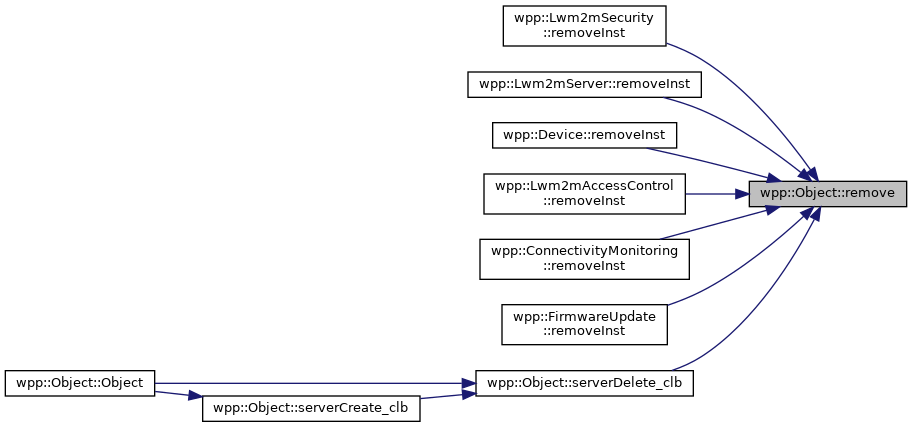

Here is the caller graph for this function:

◆ serverCreate_clb()

uint8_t wpp::Object::serverCreate_clb	(	lwm2m_context_t *	contextP,
		lwm2m_server_t *	server,
		ID_T	instanceId,
		int	numData,
		lwm2m_data_t *	dataArray,
		lwm2m_object_t *	objectP
	)

staticprotected

The create callback function for the Lwm2m core.

Parameters

contextP	The lwm2m_context_t object.
server	Contains valid pointer when request retrieved from server or NULL if request initiated by core.
instanceId	The instance ID.
numData	The number of data.
dataArray	The data array.
objectP	The lwm2m_object_t object.

Returns: The result of the create operation.

Definition at line 163 of file Object.cpp.

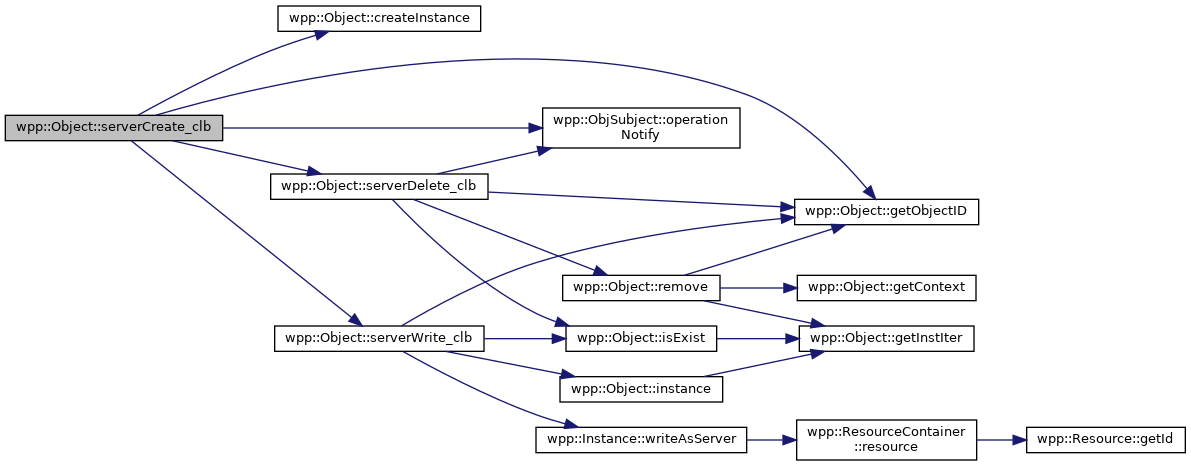

Here is the call graph for this function:

Here is the caller graph for this function:

◆ serverDelete_clb()

uint8_t wpp::Object::serverDelete_clb	(	lwm2m_context_t *	contextP,
		lwm2m_server_t *	server,
		ID_T	instanceId,
		lwm2m_object_t *	objectP
	)

staticprotected

The delete callback function for the Lwm2m core.

Parameters

contextP	The lwm2m_context_t object.
server	Contains valid pointer when request retrieved from server or NULL if request initiated by core.
instanceId	The instance ID.
objectP	The lwm2m_object_t object.

Returns: The result of the delete operation.

Definition at line 179 of file Object.cpp.

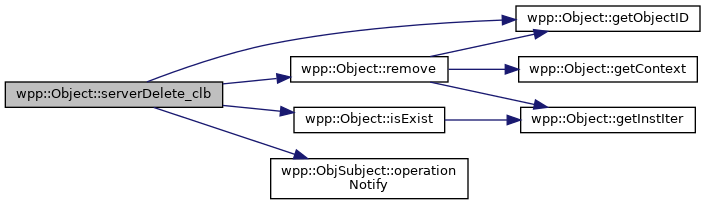

Here is the call graph for this function:

Here is the caller graph for this function:

◆ serverDiscover_clb()

uint8_t wpp::Object::serverDiscover_clb	(	lwm2m_context_t *	contextP,
		lwm2m_server_t *	server,
		ID_T	instanceId,
		int *	numDataP,
		lwm2m_data_t **	dataArrayP,
		lwm2m_object_t *	objectP
	)

staticprotected

The discover callback function for the Lwm2m core.

Parameters

contextP	The lwm2m_context_t object.
server	Contains valid pointer when request retrieved from server or NULL if request initiated by core.
instanceId	The instance ID.
numDataP	The number of data.
dataArrayP	The data array.
objectP	The lwm2m_object_t object.

Returns: The result of the discover operation.

Definition at line 156 of file Object.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ serverExecute_clb()

uint8_t wpp::Object::serverExecute_clb	(	lwm2m_context_t *	contextP,
		lwm2m_server_t *	server,
		ID_T	instanceId,
		ID_T	resId,
		uint8_t *	buffer,
		int	length,
		lwm2m_object_t *	objectP
	)

staticprotected

The execute callback function for the Lwm2m core.

Parameters

contextP	The lwm2m_context_t object.
server	Contains valid pointer when request retrieved from server or NULL if request initiated by core.
instanceId	The instance ID.
resId	The resource ID.
buffer	The buffer.
length	The length.
objectP	The lwm2m_object_t object.

Returns: The result of the execute operation.

Definition at line 149 of file Object.cpp.

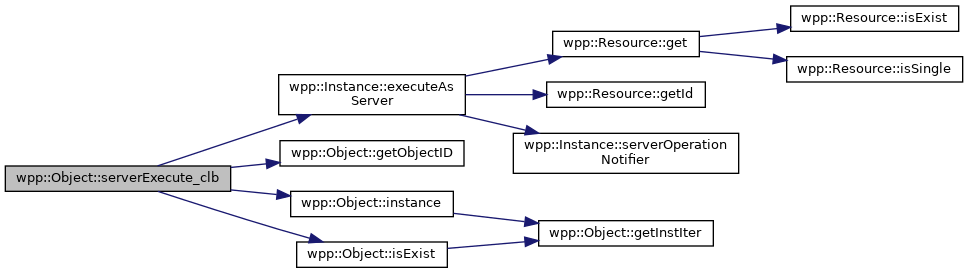

Here is the call graph for this function:

Here is the caller graph for this function:

◆ serverRead_clb()

uint8_t wpp::Object::serverRead_clb	(	lwm2m_context_t *	contextP,
		lwm2m_server_t *	server,
		ID_T	instanceId,
		int *	numDataP,
		lwm2m_data_t **	dataArrayP,
		lwm2m_object_t *	objectP
	)

staticprotected

The read callback function for the Lwm2m core.

Parameters

contextP	The lwm2m_context_t object.
server	Contains valid pointer when request retrieved from server or NULL if request initiated by core.
instanceId	The instance ID.
numDataP	The number of data.
dataArrayP	The data array.
objectP	The lwm2m_object_t object.

Returns: The result of the read operation.

Definition at line 135 of file Object.cpp.

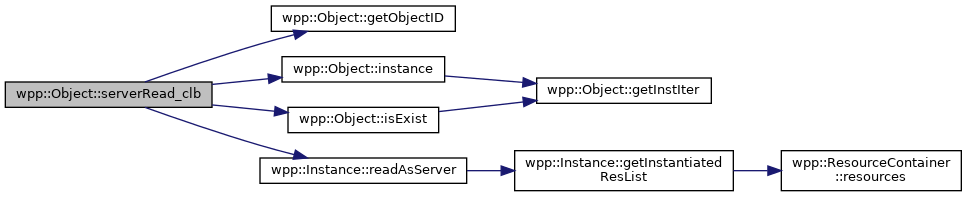

Here is the call graph for this function:

Here is the caller graph for this function:

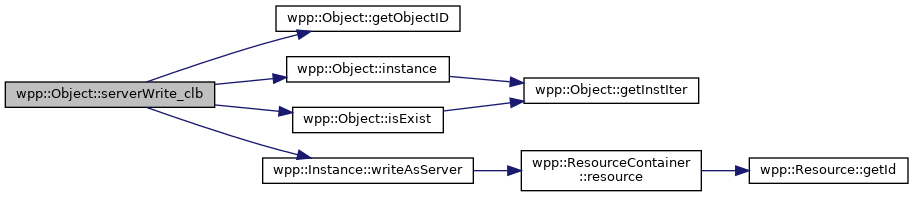

◆ serverWrite_clb()

uint8_t wpp::Object::serverWrite_clb	(	lwm2m_context_t *	contextP,
		lwm2m_server_t *	server,
		ID_T	instanceId,
		int	numData,
		lwm2m_data_t *	dataArray,
		lwm2m_object_t *	objectP,
		lwm2m_write_type_t	writeType
	)

staticprotected

The write callback function for the Lwm2m core.

Parameters

contextP	The lwm2m_context_t object.
server	Contains valid pointer when request retrieved from server or NULL if request initiated by core.
instanceId	The instance ID.
numData	The number of data.
dataArray	The data array.
objectP	The lwm2m_object_t object.
writeType	The write type.

Returns: The result of the write operation.

Definition at line 142 of file Object.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ _context

lwm2m_context_t& wpp::Object::_context

protected

Definition at line 247 of file Object.h.

◆ _instances

std::vector<Instance*> wpp::Object::_instances

protected

Definition at line 246 of file Object.h.

◆ _lwm2m_object

lwm2m_object_t wpp::Object::_lwm2m_object

protected

Definition at line 248 of file Object.h.

◆ _objInfo

ObjectInfo wpp::Object::_objInfo

protected

Definition at line 249 of file Object.h.

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Object() [1/2]

◆ Object() [2/2]

◆ ~Object()

Member Function Documentation

◆ clear()

◆ createInstance()

◆ getClient()

◆ getContext()

◆ getFirstAvailableInstanceID()

◆ getInstIter()

◆ getLwm2mObject()

◆ getObjectID()

◆ getObjectInfo()

◆ getRegistry()

◆ instance()

◆ instanceCnt()

◆ instances()

◆ isExist()

◆ remove()

◆ serverCreate_clb()

◆ serverDelete_clb()

◆ serverDiscover_clb()

◆ serverExecute_clb()

◆ serverRead_clb()

◆ serverWrite_clb()

Member Data Documentation

◆ _context

◆ _instances

◆ _lwm2m_object

◆ _objInfo
