The WppConnection class represents a connection interface for the Wpp library. More...

Classes
class	WppClient
	Represents a client interface for Wpp library. More...

class	WppConnection

class	WppGuard
	The WppGuard class provides a linker callback class that must be implemented by the user. More...

class	WppPlatform
	The WppPlatform class provides a platform-specific implementation for the Wpp library. More...

class	Instance
	Instance is interface class that implements manipulation with derived class resources. The main target of this class is to encapsulate operations like resource write and read by core, for avoid multiple definition of this mechanism in instance implementation classes. And give generalised interface to resources for core(server). More...

class	InstEventObserver
	The InstEventObserver class is an abstract base class that defines the interface for observing instance events. More...

class	InstOpObserver
	The InstOpObserver class is an abstract base class that defines the interface for observing instance operations. More...

class	InstSubject
	The InstSubject class represents a subject that allows subscribers to be notified about various events related to instance resources. More...

class	Object
	The Object class implements manipulation with Instance interface class and its inheritors. More...

class	ObjectImpl
	The ObjectImpl class is a template class that represents an implementation of an object in the Wakaama library. More...

class	ObjOpObserver
	The ObjOpObserver class is an abstract base class that defines the interface for observing object operations. More...

class	ObjSubject
	The ObjSubject class represents a subject that notifies observers about object operations and actions. More...

class	Resource
	The Resource class in the wpp namespace is a comprehensive and flexible class designed to handle different types of data within a resource-oriented architecture. It offers a range of functionalities including storing, retrieving, and validating various data types, as well as managing multiple instances of a resource. More...

class	ResourceContainer

struct	ItemOp
	The ItemOp struct represents the operations that can be performed on a instance/resource. More...

struct	ObjectInfo
	The ObjectInfo struct represents information about an object in the Wakaama data model. More...

struct	OBJ_LINK_T
	ObjLink - (object ID):(instance ID), example: 1:3. Represent as two integers in lwm2m_data_t.value.asObjLink. More...

struct	Version

struct	ResLink

struct	DataLink

class	Lwm2mSecurity

class	Lwm2mServer

class	Device

class	Lwm2mAccessControl

class	AudioClip

class	ConnectivityMonitoring

class	FirmwareUpdate

interface	FwInternalDl

class	FwUpdater

class	WppRegistry
	The WppRegistry class represents a registry for managing LWM2M objects. More...

class	WppTaskQueue
	Represents a task queue. More...

Typedefs
using	ID_T = uint16_t

using	EVENT_ID_T = uint8_t

using	BOOL_T = bool
	Wpp data types bindings. More...

using	INT_T = int64_t

using	UINT_T = uint64_t

using	FLOAT_T = double

using	TIME_T = INT_T

using	STRING_T = std::string

using	OPAQUE_T = std::vector< uint8_t >
	Opaque - represent buffer or string as lwm2m_data_t.value.asBuffer. More...

using	CORE_LINK_T = std::string
	CoreLink - </3/0> or </1/0/>;ssid=101 or </5>,</4>,</55>;ver=1.9,</55/0>. Represent as string in lwm2m_data_t.value.asBuffer. More...

using	EXECUTE_T = std::function< bool(Instance &, ID_T, const OPAQUE_T &)>

using	VERIFY_INT_T = std::function< bool(const INT_T &)>
	Data validation function types. More...

using	VERIFY_UINT_T = std::function< bool(const UINT_T &)>

using	VERIFY_FLOAT_T = std::function< bool(const FLOAT_T &)>

using	VERIFY_OPAQUE_T = std::function< bool(const OPAQUE_T &)>

using	VERIFY_BOOL_T = std::function< bool(const BOOL_T &)>

using	VERIFY_OBJ_LINK_T = std::function< bool(const OBJ_LINK_T &)>

using	VERIFY_STRING_T = std::function< bool(const STRING_T &)>

using	VERIFY_EXECUTE_T = std::function< bool(const EXECUTE_T &)>

using	VERIFY_CORE_LINK_T = std::function< bool(const CORE_LINK_T &)>

Enumerations
enum class	TYPE_ID : uint8_t { BOOL , INT , UINT , FLOAT , OBJ_LINK , TIME , OPAQUE , STRING , CORE_LINK , EXECUTE , UNDEFINED }
	Wpp data types ID. More...

enum class	PRIORITY : uint8_t { HIGH , MEDIUM , LOW , DEFAULT = LOW }

enum class	IS_SINGLE : uint8_t { SINGLE , MULTIPLE }

enum class	IS_MANDATORY : uint8_t { MANDATORY , OPTIONAL }

enum	OBJ_ID : ID_T { DEVICE = 3 , LWM2M_SERVER = 1 , LWM2M_SECURITY = 0 , CONNECTIVITY_MONITORING = 4 , LWM2M_ACCESS_CONTROL = 2 , FIRMWARE_UPDATE = 5 , MAX_ID = ID_T_MAX_VAL }
	Enumeration of object IDs in the Wpp library. More...

enum	FwUpdRes : uint8_t { R_INITIAL = 0 , R_FW_UPD_SUCCESS = 1 , R_NOT_ENOUGH_FLASH = 2 , R_OUT_OF_RAM = 3 , R_CONN_LOST = 4 , R_INTEGRITY_CHECK_FAIL = 5 , R_UNSUPPORTED_PKG_TYPE = 6 , R_INVALID_URI = 7 , R_FW_UPD_FAIL = 8 , R_UNSUPPORTED_PROTOCOL = 9 , UPD_RES_MAX }

enum	FwUpdProtocol : uint8_t { COAP = 0 , COAPS = 1 , HTTP = 2 , HTTPS = 3 , COAP_TCP = 4 , COAP_TLS = 5 , FW_UPD_PROTOCOL_MAX }

enum	FwUpdState : uint8_t { S_IDLE = 0 , S_DOWNLOADING = 1 , S_DOWNLOADED = 2 , S_UPDATING = 3 , STATE_MAX }

enum	FwUpdDelivery : uint8_t { PULL = 0 , PUSH = 1 , BOTH = 2 , FW_UPD_DELIVERY_MAX }

Functions
void *	lwm2m_connect_server (uint16_t secObjInstID, void *userData)

void	lwm2m_close_connection (void sessionH, void userData)

uint8_t	lwm2m_buffer_send (void sessionH, uint8_t buffer, size_t length, void *userData)

bool	lwm2m_session_is_equal (void session1, void session2, void *userData)

template<typename T >
TYPE_ID	dataTypeToID ()
	Determining type ID by real type. More...

bool	wppBindingValidate (const STRING_T &binding)

Variables
const ObjectInfo	LWM2M_SECURITY_OBJ_INFO

const ObjectInfo	LWM2M_SERVER_OBJ_INFO

const ObjectInfo	DEVICE_OBJ_INFO

const ObjectInfo	LWM2M_ACCESS_CONTROL_OBJ_INFO

const ObjectInfo	CONNECTIVITY_MONITORING_OBJ_INFO

const ObjectInfo	FIRMWARE_UPDATE_OBJ_INFO

Detailed Description

The WppConnection class represents a connection interface for the Wpp library.

This class provides an abstract interface for establishing and managing connections in the Wpp library. It defines pure virtual methods that must be implemented by the user to establish a connection, disconnect from a connection, compare session identifiers, and send packets over the connection.

The WppConnection class also provides methods for adding packets to a queue, retrieving the size of the packet queue, clearing the packet queue, and setting/getting the COAP block size.

Note: This class is meant to be subclassed by the user to provide the implementation for the virtual methods.

Typedef Documentation

◆ BOOL_T

using wpp::BOOL_T = typedef bool

Wpp data types bindings.

Definition at line 40 of file WppTypes.h.

◆ CORE_LINK_T

using wpp::CORE_LINK_T = typedef std::string

CoreLink - </3/0> or </1/0/>;ssid=101 or </5>,</4>,</55>;ver=1.9,</55/0>. Represent as string in lwm2m_data_t.value.asBuffer.

Definition at line 62 of file WppTypes.h.

◆ EVENT_ID_T

using wpp::EVENT_ID_T = typedef uint8_t

Definition at line 18 of file WppTypes.h.

◆ EXECUTE_T

using wpp::EXECUTE_T = typedef std::function<bool(Instance&, ID_T, const OPAQUE_T&)>

Definition at line 72 of file WppTypes.h.

◆ FLOAT_T

using wpp::FLOAT_T = typedef double

Definition at line 43 of file WppTypes.h.

◆ ID_T

using wpp::ID_T = typedef uint16_t

Definition at line 15 of file WppTypes.h.

◆ INT_T

using wpp::INT_T = typedef int64_t

Examples: For.

Definition at line 41 of file WppTypes.h.

◆ OPAQUE_T

using wpp::OPAQUE_T = typedef std::vector<uint8_t>

Opaque - represent buffer or string as lwm2m_data_t.value.asBuffer.

Definition at line 49 of file WppTypes.h.

◆ STRING_T

using wpp::STRING_T = typedef std::string

Definition at line 45 of file WppTypes.h.

◆ TIME_T

using wpp::TIME_T = typedef INT_T

Definition at line 44 of file WppTypes.h.

◆ UINT_T

using wpp::UINT_T = typedef uint64_t

Definition at line 42 of file WppTypes.h.

◆ VERIFY_BOOL_T

using wpp::VERIFY_BOOL_T = typedef std::function<bool(const BOOL_T&)>

Definition at line 98 of file WppTypes.h.

◆ VERIFY_CORE_LINK_T

using wpp::VERIFY_CORE_LINK_T = typedef std::function<bool(const CORE_LINK_T &)>

Definition at line 102 of file WppTypes.h.

◆ VERIFY_EXECUTE_T

using wpp::VERIFY_EXECUTE_T = typedef std::function<bool(const EXECUTE_T &)>

Definition at line 101 of file WppTypes.h.

◆ VERIFY_FLOAT_T

using wpp::VERIFY_FLOAT_T = typedef std::function<bool(const FLOAT_T&)>

Definition at line 96 of file WppTypes.h.

◆ VERIFY_INT_T

using wpp::VERIFY_INT_T = typedef std::function<bool(const INT_T&)>

Data validation function types.

Definition at line 94 of file WppTypes.h.

◆ VERIFY_OBJ_LINK_T

using wpp::VERIFY_OBJ_LINK_T = typedef std::function<bool(const OBJ_LINK_T&)>

Definition at line 99 of file WppTypes.h.

◆ VERIFY_OPAQUE_T

using wpp::VERIFY_OPAQUE_T = typedef std::function<bool(const OPAQUE_T&)>

Definition at line 97 of file WppTypes.h.

◆ VERIFY_STRING_T

using wpp::VERIFY_STRING_T = typedef std::function<bool(const STRING_T&)>

Definition at line 100 of file WppTypes.h.

◆ VERIFY_UINT_T

using wpp::VERIFY_UINT_T = typedef std::function<bool(const UINT_T&)>

Definition at line 95 of file WppTypes.h.

Enumeration Type Documentation

◆ FwUpdDelivery

enum wpp::FwUpdDelivery : uint8_t

Enumerator
PULL
PUSH
BOTH
FW_UPD_DELIVERY_MAX

Definition at line 43 of file FwTypes.h.

◆ FwUpdProtocol

enum wpp::FwUpdProtocol : uint8_t

Enumerator
COAP
COAPS
HTTP
HTTPS
COAP_TCP
COAP_TLS
FW_UPD_PROTOCOL_MAX

Definition at line 24 of file FwTypes.h.

◆ FwUpdRes

enum wpp::FwUpdRes : uint8_t

Enumerator
R_INITIAL
R_FW_UPD_SUCCESS
R_NOT_ENOUGH_FLASH
R_OUT_OF_RAM
R_CONN_LOST
R_INTEGRITY_CHECK_FAIL
R_UNSUPPORTED_PKG_TYPE
R_INVALID_URI
R_FW_UPD_FAIL
R_UNSUPPORTED_PROTOCOL
UPD_RES_MAX

Definition at line 9 of file FwTypes.h.

◆ FwUpdState

enum wpp::FwUpdState : uint8_t

Enumerator
S_IDLE
S_DOWNLOADING
S_DOWNLOADED
S_UPDATING
STATE_MAX

Definition at line 35 of file FwTypes.h.

◆ IS_MANDATORY

enum wpp::IS_MANDATORY : uint8_t

strong

Enumerator
MANDATORY
OPTIONAL

Definition at line 116 of file WppTypes.h.

◆ IS_SINGLE

enum wpp::IS_SINGLE : uint8_t

strong

Enumerator
SINGLE
MULTIPLE

Definition at line 111 of file WppTypes.h.

◆ OBJ_ID

enum wpp::OBJ_ID : ID_T

Enumeration of object IDs in the Wpp library.

This enumeration represents the object IDs used in the Wpp library. It includes both mandatory and optional object IDs.

Enumerator
DEVICE
LWM2M_SERVER
LWM2M_SECURITY
CONNECTIVITY_MONITORING
LWM2M_ACCESS_CONTROL
FIRMWARE_UPDATE
MAX_ID

Definition at line 14 of file ObjectID.h.

◆ PRIORITY

enum wpp::PRIORITY : uint8_t

strong

Enumerator
HIGH
MEDIUM
LOW
DEFAULT

Definition at line 104 of file WppTypes.h.

◆ TYPE_ID

enum wpp::TYPE_ID : uint8_t

strong

Wpp data types ID.

Enumerator
BOOL
INT
UINT
FLOAT
OBJ_LINK
TIME
OPAQUE
STRING
CORE_LINK
EXECUTE
UNDEFINED

Definition at line 23 of file WppTypes.h.

Function Documentation

◆ dataTypeToID()

template<typename T >

TYPE_ID wpp::dataTypeToID ( )

Determining type ID by real type.

Definition at line 78 of file WppTypes.h.

◆ lwm2m_buffer_send()

uint8_t wpp::lwm2m_buffer_send	(	void *	sessionH,
		uint8_t *	buffer,
		size_t	length,
		void *	userData
	)

Definition at line 114 of file WppConnection.cpp.

Here is the call graph for this function:

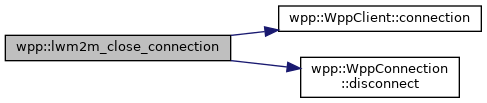

◆ lwm2m_close_connection()

void wpp::lwm2m_close_connection	(	void *	sessionH,
		void *	userData
	)

Definition at line 103 of file WppConnection.cpp.

Here is the call graph for this function:

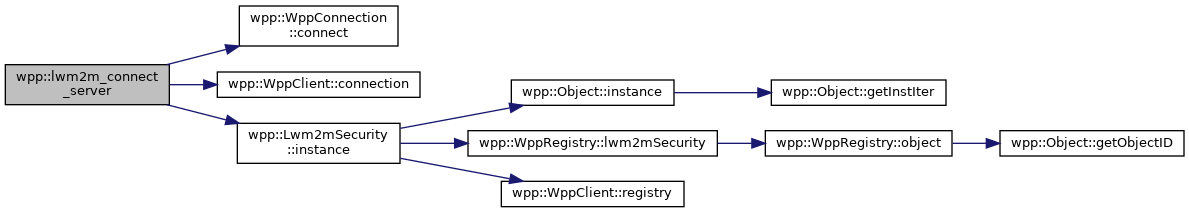

◆ lwm2m_connect_server()

void* wpp::lwm2m_connect_server	(	uint16_t	secObjInstID,
		void *	userData
	)

Definition at line 79 of file WppConnection.cpp.

Here is the call graph for this function:

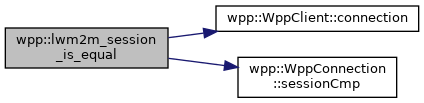

◆ lwm2m_session_is_equal()

bool wpp::lwm2m_session_is_equal	(	void *	session1,
		void *	session2,
		void *	userData
	)

Definition at line 127 of file WppConnection.cpp.

Here is the call graph for this function:

◆ wppBindingValidate()

bool wpp::wppBindingValidate ( const STRING_T & binding )

Definition at line 6 of file WppBindings.cpp.

Variable Documentation

◆ CONNECTIVITY_MONITORING_OBJ_INFO

const ObjectInfo wpp::CONNECTIVITY_MONITORING_OBJ_INFO

inline

Initial value:

= {

    "Connectivity Monitoring",

    OBJ_ID::CONNECTIVITY_MONITORING,

    "urn:oma:lwm2m:oma:4:1.3",

    {1,3},

    {1,1},

    IS_SINGLE::SINGLE,

    IS_MANDATORY::OPTIONAL,

    ItemOp(ItemOp::READ|
           ItemOp::WRITE|
           ItemOp::DISCOVER|
           ItemOp::EXECUTE),

}

Definition at line 15 of file ConnectivityMonitoringInfo.h.

◆ DEVICE_OBJ_INFO

const ObjectInfo wpp::DEVICE_OBJ_INFO

inline

Initial value:

= {

    "Device",

    OBJ_ID::DEVICE,

    "urn:oma:lwm2m:oma:3:1.2",

    {1,2},

    {1,1},

    IS_SINGLE::SINGLE,

    IS_MANDATORY::MANDATORY,

    ItemOp(ItemOp::READ|
           ItemOp::WRITE|
           ItemOp::DISCOVER|
           ItemOp::EXECUTE),

}

Definition at line 15 of file DeviceInfo.h.

◆ FIRMWARE_UPDATE_OBJ_INFO

const ObjectInfo wpp::FIRMWARE_UPDATE_OBJ_INFO

inline

Initial value:

= {

    "Firmware Update",

    OBJ_ID::FIRMWARE_UPDATE,

    "urn:oma:lwm2m:oma:5:1.1",

    {1,1},

    {1,1},

    IS_SINGLE::SINGLE,

    IS_MANDATORY::OPTIONAL,

    ItemOp(ItemOp::READ|
           ItemOp::WRITE|
           ItemOp::DISCOVER|
           ItemOp::EXECUTE),

}

Definition at line 15 of file FirmwareUpdateInfo.h.

◆ LWM2M_ACCESS_CONTROL_OBJ_INFO

const ObjectInfo wpp::LWM2M_ACCESS_CONTROL_OBJ_INFO

inline

Initial value:

= {

    "LwM2M Access Control",

    OBJ_ID::LWM2M_ACCESS_CONTROL,

    "urn:oma:lwm2m:oma:2:1.1",

    {1,1},

    {1,0},

    IS_SINGLE::MULTIPLE,

    IS_MANDATORY::OPTIONAL,


    ItemOp(ItemOp::CREATE|
           ItemOp::DELETE|
           ItemOp::READ|
           ItemOp::WRITE|
           ItemOp::DISCOVER|
           ItemOp::EXECUTE),

}

Definition at line 15 of file Lwm2mAccessControlInfo.h.

◆ LWM2M_SECURITY_OBJ_INFO

const ObjectInfo wpp::LWM2M_SECURITY_OBJ_INFO

inline

Initial value:

= {

    "LWM2M Security",

    OBJ_ID::LWM2M_SECURITY,

    "urn:oma:lwm2m:oma:0:1.1",

    {1,1},

    {1,1},

    IS_SINGLE::MULTIPLE,

    IS_MANDATORY::MANDATORY,


    ItemOp(ItemOp::CREATE|
           ItemOp::DELETE|
           ItemOp::READ|
           ItemOp::WRITE|
           ItemOp::DISCOVER|
           ItemOp::EXECUTE),

}

Definition at line 15 of file Lwm2mSecurityInfo.h.

◆ LWM2M_SERVER_OBJ_INFO

const ObjectInfo wpp::LWM2M_SERVER_OBJ_INFO

inline

Initial value:

= {

    "LwM2M Server",

    OBJ_ID::LWM2M_SERVER,

    "urn:oma:lwm2m:oma:1:1.1",

    {1,1},

    {1,1},

    IS_SINGLE::MULTIPLE,

    IS_MANDATORY::MANDATORY,


    ItemOp(ItemOp::CREATE|
           ItemOp::DELETE|
           ItemOp::READ|
           ItemOp::WRITE|
           ItemOp::DISCOVER|
           ItemOp::EXECUTE),

}

Definition at line 15 of file Lwm2mServerInfo.h.

Classes

Typedefs

Enumerations

Functions

Variables

Detailed Description

Typedef Documentation

◆ BOOL_T

◆ CORE_LINK_T

◆ EVENT_ID_T

◆ EXECUTE_T

◆ FLOAT_T

◆ ID_T

◆ INT_T

◆ OPAQUE_T

◆ STRING_T

◆ TIME_T

◆ UINT_T

◆ VERIFY_BOOL_T

◆ VERIFY_CORE_LINK_T

◆ VERIFY_EXECUTE_T

◆ VERIFY_FLOAT_T

◆ VERIFY_INT_T

◆ VERIFY_OBJ_LINK_T

◆ VERIFY_OPAQUE_T

◆ VERIFY_STRING_T

◆ VERIFY_UINT_T

Enumeration Type Documentation

◆ FwUpdDelivery

◆ FwUpdProtocol

◆ FwUpdRes

◆ FwUpdState

◆ IS_MANDATORY

◆ IS_SINGLE

◆ OBJ_ID

◆ PRIORITY

◆ TYPE_ID

Function Documentation

◆ dataTypeToID()

◆ lwm2m_buffer_send()

◆ lwm2m_close_connection()

◆ lwm2m_connect_server()

◆ lwm2m_session_is_equal()

◆ wppBindingValidate()

Variable Documentation

◆ CONNECTIVITY_MONITORING_OBJ_INFO

◆ DEVICE_OBJ_INFO

◆ FIRMWARE_UPDATE_OBJ_INFO

◆ LWM2M_ACCESS_CONTROL_OBJ_INFO

◆ LWM2M_SECURITY_OBJ_INFO

◆ LWM2M_SERVER_OBJ_INFO
