#include <Device.h>

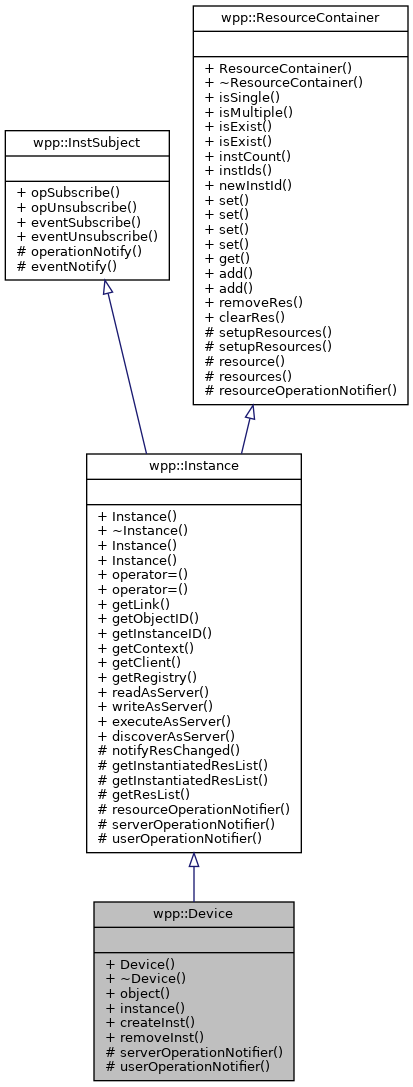

Inheritance diagram for wpp::Device:

Collaboration diagram for wpp::Device:

Public Types
enum	ID : ID_T { MANUFACTURER_0 = 0 , MODEL_NUMBER_1 = 1 , SERIAL_NUMBER_2 = 2 , FIRMWARE_VERSION_3 = 3 , REBOOT_4 = 4 , ERROR_CODE_11 = 11 , CURRENT_TIME_13 = 13 , SUPPORTED_BINDING_AND_MODES_16 = 16 }

enum	ErrCode : uint8_t { NO_ERROR = 0 , LOW_BAT = 1 , EXT_PWR_SUPP_OFF = 2 , GPS_FAIL = 3 , LOW_SIG_STRENGTH = 4 , OUT_OF_MEM = 5 , SMS_FAIL = 6 , IP_CONN_FAIL = 7 , PERIPH_FAIL = 8 , ERR_CODE_MAX }

Public Member Functions
	Device (lwm2m_context_t &context, const OBJ_LINK_T &id)

	~Device ()

Public Member Functions inherited from wpp::Instance
	Instance (lwm2m_context_t &context, const OBJ_LINK_T &id)

virtual	~Instance ()

	Instance (const Instance &)=delete

	Instance (Instance &&)=delete

Instance &	operator= (const Instance &)=delete

Instance &	operator= (Instance &&)=delete

OBJ_LINK_T	getLink () const

OBJ_ID	getObjectID () const

ID_T	getInstanceID () const

lwm2m_context_t &	getContext ()
	Return context that can be used by derived class. More...

WppClient &	getClient ()
	Helpfull methods to get client instances. More...

WppRegistry &	getRegistry ()
	Helpfull methods to get registry instances. More...

uint8_t	readAsServer (lwm2m_server_t server, int numDataP, lwm2m_data_t **dataArray)
	This methods is called by the core when the server wants to read, write, discover, execute the value of the resource. User should not call this methods directly. More...

uint8_t	writeAsServer (lwm2m_server_t server, int numData, lwm2m_data_t dataArray, lwm2m_write_type_t writeType)

uint8_t	executeAsServer (lwm2m_server_t server, ID_T resId, uint8_t buffer, int length)

uint8_t	discoverAsServer (lwm2m_server_t server, int numDataP, lwm2m_data_t **dataArray)

Public Member Functions inherited from wpp::InstSubject
void	opSubscribe (InstOpObserver *observer)
	Subscribes an observer to receive notifications about instance resource operations. More...

void	opUnsubscribe (InstOpObserver *observer)
	Unsubscribes an observer from receiving notifications about instance resource operations. More...

void	eventSubscribe (InstEventObserver *observer)
	Subscribes an observer to receive notifications about custom instance events. More...

void	eventUnsubscribe (InstEventObserver *observer)
	Unsubscribes an observer from receiving notifications about custom instance events. More...

Public Member Functions inherited from wpp::ResourceContainer
	ResourceContainer ()=default

virtual	~ResourceContainer ()=default

bool	isSingle (ID_T resId)
	Check if the resource is SINGLE. More...

bool	isMultiple (ID_T resId)
	Check if the resource is MULTIPLE. More...

bool	isExist (ID_T resId)
	Check if the instance ID is exist. More...

bool	isExist (ID_T resId, ID_T resInstId)
	Check if the instance ID is exist. More...

size_t	instCount (ID_T resId)
	Get the number of resource instances. More...

std::vector< ID_T >	instIds (ID_T resId)
	Returns vector with available ids of resource instances. More...

ID_T	newInstId (ID_T resId)
	Find first available instance ID that is not used. More...

template<typename T >
bool	set (ID_T resId, const T &value)
	Set data value by copy for the resource. More...

template<typename T >
bool	set (ID_T resId, ID_T resInstId, const T &value)
	Set data value by copy for the resource instance. More...

template<typename T >
bool	set (ID_T resId, T &&value)
	Set data value by move for the resource. More...

template<typename T >
bool	set (ID_T resId, ID_T resInstId, T &&value)
	Set data value by move for the resource instance. More...

template<typename T >
const T &	get (ID_T resId, ID_T resInstId=SINGLE_INSTANCE_ID)

template<typename T >
bool	add (ID_T resId, const T &value)
	Add new instance with data value by copy for the MULTIPLE resource. More...

template<typename T >
bool	add (ID_T resId, T &&value)
	Add new instance with data value by move for the MULTIPLE resource. More...

bool	removeRes (ID_T resId, ID_T resInstId)
	Remove resource instance if resource is MULTIPLE and instance exists, if the resource is SINGLE remove is not possible. More...

bool	clearRes (ID_T resId)
	Remove all instances. More...

Static Public Member Functions
static Object &	object (WppClient &ctx)
	Gets the Object reference. More...

static Device *	instance (WppClient &ctx, ID_T instId=ID_T_MAX_VAL)
	Gets an instance of the object. More...

static Device *	createInst (WppClient &ctx, ID_T instId=ID_T_MAX_VAL)
	Creates an instance of the object. More...

static bool	removeInst (WppClient &ctx, ID_T instId)
	Removes an instance of the object. More...

Protected Member Functions
void	serverOperationNotifier (Instance *securityInst, ItemOp::TYPE type, const ResLink &resLink) override
	This method must be implemented by the derived class, and handle information about resource operation (WRITE, EXECUTE). Called by Instance after resource operation performed by SERVER if the operation is WRITE, if the operation is EXECUTE then called before this operation. When the EXECUTE operation, the handler that was set before the serverOperationNotifier() call is used. More...

void	userOperationNotifier (ItemOp::TYPE type, const ResLink &resLink) override
	This method must be implemented by the derived class, and handle information about resource operation (WRITE, DELETE). Called by Instance after resource operation performed by the USER. More...

Protected Member Functions inherited from wpp::Instance
void	notifyResChanged (ID_T resId, ID_T resInstId=ID_T_MAX_VAL)
	Notify server about resource value change. More...

std::vector< Resource * >	getInstantiatedResList ()
	This method return list with resources that has been instantiated. If resources does not exist then return empty list. More...

std::vector< Resource * >	getInstantiatedResList (const ItemOp &filter)

std::vector< Resource * >	getResList ()
	This method return list with all resources that has been defined. If resources does not exist then return empty list. More...

void	resourceOperationNotifier (ItemOp::TYPE type, ID_T resId, ID_T resInstId) override
	Handle information about resource operation (WRITE, DELETE). Called by ResourceContainer after resource operation performed. More...

Protected Member Functions inherited from wpp::InstSubject
void	operationNotify (Instance &inst, const ResLink &resLink, ItemOp::TYPE type)
	Notifies the observers about an operation on an instance resource. More...

void	eventNotify (Instance &inst, EVENT_ID_T eventId)
	Notifies the observers about a custom instance event. More...

Protected Member Functions inherited from wpp::ResourceContainer
void	setupResources (const std::vector< Resource > &resources)
	This methods setup resources list. More...

void	setupResources (std::vector< Resource > &&resources)

Resource *	resource (ID_T resId)
	This method return resource ptr if it exists. If resources does not exist then return NULL. More...

std::vector< Resource > &	resources ()
	This method return list with all resources that has been defined. More...

Detailed Description

Definition at line 28 of file Device.h.

Member Enumeration Documentation

◆ ErrCode

enum wpp::Device::ErrCode : uint8_t

Enumerator
NO_ERROR
LOW_BAT
EXT_PWR_SUPP_OFF
GPS_FAIL
LOW_SIG_STRENGTH
OUT_OF_MEM
SMS_FAIL
IP_CONN_FAIL
PERIPH_FAIL
ERR_CODE_MAX

Definition at line 111 of file Device.h.

◆ ID

enum wpp::Device::ID : ID_T

Enumerator
MANUFACTURER_0
MODEL_NUMBER_1
SERIAL_NUMBER_2
FIRMWARE_VERSION_3
REBOOT_4
ERROR_CODE_11
CURRENT_TIME_13
SUPPORTED_BINDING_AND_MODES_16

Definition at line 30 of file Device.h.

Constructor & Destructor Documentation

◆ Device()

wpp::Device::Device	(	lwm2m_context_t &	context,
		const OBJ_LINK_T &	id
	)

Definition at line 26 of file Device.cpp.

◆ ~Device()

wpp::Device::~Device ( )

Definition at line 41 of file Device.cpp.

Here is the call graph for this function:

Member Function Documentation

◆ createInst()

Device * wpp::Device::createInst	(	WppClient &	ctx,
		ID_T	instId = `ID_T_MAX_VAL`
	)

static

Creates an instance of the object.

Parameters

ctx	- WppClient context
instanceID	The instance ID.

Returns: A pointer to the created Instance object or NULL.

Definition at line 59 of file Device.cpp.

Here is the call graph for this function:

◆ instance()

Device * wpp::Device::instance	(	WppClient &	ctx,
		ID_T	instId = `ID_T_MAX_VAL`
	)

static

Gets an instance of the object.

Parameters

ctx	- WppClient context.
instId	The instance ID. If not provided, the first available instance is returned.

Returns: A pointer to the Instance object or NULL.

Definition at line 53 of file Device.cpp.

Here is the call graph for this function:

◆ object()

Object & wpp::Device::object ( WppClient & ctx )

static

Gets the Object reference.

Parameters

ctx	- WppClient context.

Returns: A reference to the Object.

Definition at line 49 of file Device.cpp.

Here is the call graph for this function:

◆ removeInst()

bool wpp::Device::removeInst	(	WppClient &	ctx,
		ID_T	instId
	)

static

Removes an instance of the object.

Parameters

ctx	- WppClient context.
instId	The instance ID.

Returns: True if the instance was successfully removed, false otherwise.

Definition at line 65 of file Device.cpp.

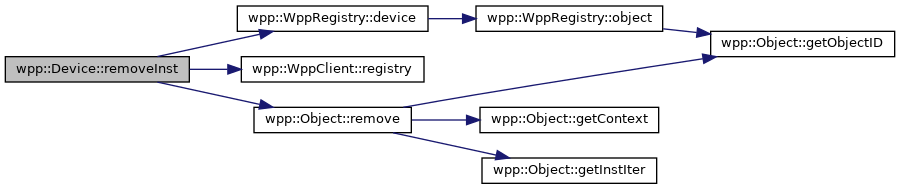

Here is the call graph for this function:

◆ serverOperationNotifier()

void wpp::Device::serverOperationNotifier	(	Instance *	securityInst,
		ItemOp::TYPE	type,
		const ResLink &	resLink
	)

overrideprotectedvirtual

This method must be implemented by the derived class, and handle information about resource operation (WRITE, EXECUTE). Called by Instance after resource operation performed by SERVER if the operation is
WRITE, if the operation is EXECUTE then called before this operation. When the EXECUTE operation, the handler that was set before the serverOperationNotifier() call is used.

Parameters

securityInst - Contains security instance when the request received from the server or NULL if the request is initiated by the core.

Implements wpp::Instance.

Definition at line 69 of file Device.cpp.

Here is the call graph for this function:

◆ userOperationNotifier()

void wpp::Device::userOperationNotifier	(	ItemOp::TYPE	type,
		const ResLink &	resLink
	)

overrideprotectedvirtual

This method must be implemented by the derived class, and handle information about resource operation (WRITE, DELETE). Called by Instance after resource operation performed by the USER.

Implements wpp::Instance.

Definition at line 79 of file Device.cpp.

Here is the call graph for this function:
