#include <Lwm2mAccessControl.h>

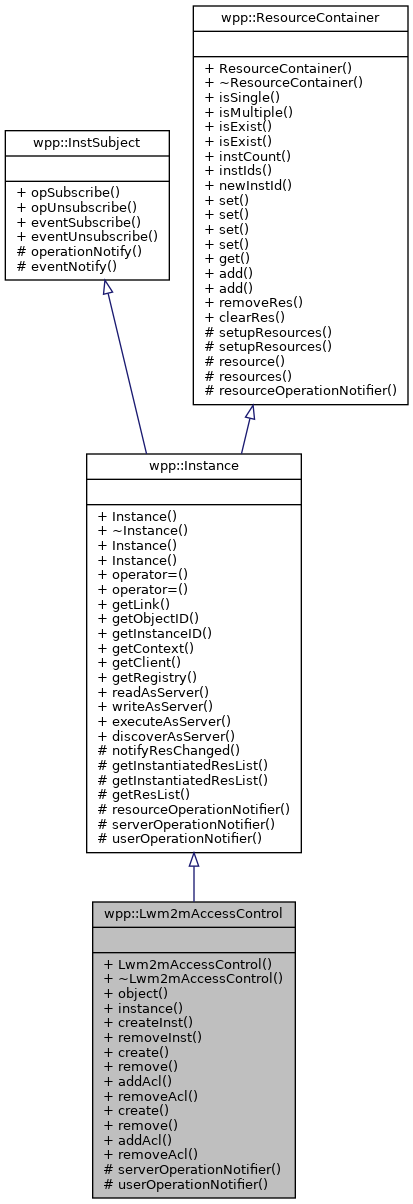

Inheritance diagram for wpp::Lwm2mAccessControl:

Collaboration diagram for wpp::Lwm2mAccessControl:

Public Types
enum	ID : ID_T { OBJECT_ID_0 = 0 , OBJECT_INSTANCE_ID_1 = 1 , ACL_2 = 2 , ACCESS_CONTROL_OWNER_3 = 3 }

enum	ACL : uint8_t { NO_ACCESS = LWM2M_AC_NO_ACCESS , R_O_W_ATTR = LWM2M_AC_READ_OP , WRITE = LWM2M_AC_WRITE_OP , EXECUTE = LWM2M_AC_EXECUTE_OP , DELETE = LWM2M_AC_DELETE_OP , CREATE = LWM2M_AC_CREATE_OP , ALL_OBJ_RIGHTS = CREATE , ALL_INST_RIGHTS = R_O_W_ATTR \| WRITE \| EXECUTE \| DELETE }

Public Member Functions
	Lwm2mAccessControl (lwm2m_context_t &context, const OBJ_LINK_T &id)

	~Lwm2mAccessControl ()

Public Member Functions inherited from wpp::Instance
	Instance (lwm2m_context_t &context, const OBJ_LINK_T &id)

virtual	~Instance ()

	Instance (const Instance &)=delete

	Instance (Instance &&)=delete

Instance &	operator= (const Instance &)=delete

Instance &	operator= (Instance &&)=delete

OBJ_LINK_T	getLink () const

OBJ_ID	getObjectID () const

ID_T	getInstanceID () const

lwm2m_context_t &	getContext ()
	Return context that can be used by derived class. More...

WppClient &	getClient ()
	Helpfull methods to get client instances. More...

WppRegistry &	getRegistry ()
	Helpfull methods to get registry instances. More...

uint8_t	readAsServer (lwm2m_server_t server, int numDataP, lwm2m_data_t **dataArray)
	This methods is called by the core when the server wants to read, write, discover, execute the value of the resource. User should not call this methods directly. More...

uint8_t	writeAsServer (lwm2m_server_t server, int numData, lwm2m_data_t dataArray, lwm2m_write_type_t writeType)

uint8_t	executeAsServer (lwm2m_server_t server, ID_T resId, uint8_t buffer, int length)

uint8_t	discoverAsServer (lwm2m_server_t server, int numDataP, lwm2m_data_t **dataArray)

Public Member Functions inherited from wpp::InstSubject
void	opSubscribe (InstOpObserver *observer)
	Subscribes an observer to receive notifications about instance resource operations. More...

void	opUnsubscribe (InstOpObserver *observer)
	Unsubscribes an observer from receiving notifications about instance resource operations. More...

void	eventSubscribe (InstEventObserver *observer)
	Subscribes an observer to receive notifications about custom instance events. More...

void	eventUnsubscribe (InstEventObserver *observer)
	Unsubscribes an observer from receiving notifications about custom instance events. More...

Public Member Functions inherited from wpp::ResourceContainer
	ResourceContainer ()=default

virtual	~ResourceContainer ()=default

bool	isSingle (ID_T resId)
	Check if the resource is SINGLE. More...

bool	isMultiple (ID_T resId)
	Check if the resource is MULTIPLE. More...

bool	isExist (ID_T resId)
	Check if the instance ID is exist. More...

bool	isExist (ID_T resId, ID_T resInstId)
	Check if the instance ID is exist. More...

size_t	instCount (ID_T resId)
	Get the number of resource instances. More...

std::vector< ID_T >	instIds (ID_T resId)
	Returns vector with available ids of resource instances. More...

ID_T	newInstId (ID_T resId)
	Find first available instance ID that is not used. More...

template<typename T >
bool	set (ID_T resId, const T &value)
	Set data value by copy for the resource. More...

template<typename T >
bool	set (ID_T resId, ID_T resInstId, const T &value)
	Set data value by copy for the resource instance. More...

template<typename T >
bool	set (ID_T resId, T &&value)
	Set data value by move for the resource. More...

template<typename T >
bool	set (ID_T resId, ID_T resInstId, T &&value)
	Set data value by move for the resource instance. More...

template<typename T >
const T &	get (ID_T resId, ID_T resInstId=SINGLE_INSTANCE_ID)

template<typename T >
bool	add (ID_T resId, const T &value)
	Add new instance with data value by copy for the MULTIPLE resource. More...

template<typename T >
bool	add (ID_T resId, T &&value)
	Add new instance with data value by move for the MULTIPLE resource. More...

bool	removeRes (ID_T resId, ID_T resInstId)
	Remove resource instance if resource is MULTIPLE and instance exists, if the resource is SINGLE remove is not possible. More...

bool	clearRes (ID_T resId)
	Remove all instances. More...

Static Public Member Functions
static Object &	object (WppClient &ctx)
	Gets the Object reference. More...

static Lwm2mAccessControl *	instance (WppClient &ctx, ID_T instId=ID_T_MAX_VAL)
	Gets an instance of the object. More...

static Lwm2mAccessControl *	createInst (WppClient &ctx, ID_T instId=ID_T_MAX_VAL)
	Creates an instance of the object. More...

static bool	removeInst (WppClient &ctx, ID_T instId)
	Removes an instance of the object. More...

static Lwm2mAccessControl *	create (Object &targetObj, uint8_t defaultAcl=NO_ACCESS)
	Create Lwm2mAccessControl object instance for target object. More...

static void	remove (Object &targetObj)
	Delete Lwm2mAccessControl object instance for target object. More...

static bool	addAcl (Object &targetObj, ID_T serverShortId, uint8_t acl=ALL_OBJ_RIGHTS)
	Add ACL for target object. More...

static void	removeAcl (Object &targetObj, ID_T serverShortId)
	Remove ACL for target object. More...

static Lwm2mAccessControl *	create (Instance &targetInst, ID_T owner=AC_CLIENT_OWNER, uint8_t defaultAcl=NO_ACCESS)
	Get Lwm2mAccessControl object instance for target object instance. More...

static void	remove (Instance &targetInst)
	Delete Lwm2mAccessControl object instance for target object instance. More...

static bool	addAcl (Instance &targetInst, ID_T serverShortId, uint8_t acl=ALL_INST_RIGHTS)
	Add ACL for target object instance. More...

static void	removeAcl (Instance &targetInst, ID_T serverShortId)
	Remove ACL for target object instance. More...

Protected Member Functions
void	serverOperationNotifier (Instance *securityInst, ItemOp::TYPE type, const ResLink &resLink) override
	This method must be implemented by the derived class, and handle information about resource operation (WRITE, EXECUTE). Called by Instance after resource operation performed by SERVER if the operation is WRITE, if the operation is EXECUTE then called before this operation. When the EXECUTE operation, the handler that was set before the serverOperationNotifier() call is used. More...

void	userOperationNotifier (ItemOp::TYPE type, const ResLink &resLink) override
	This method must be implemented by the derived class, and handle information about resource operation (WRITE, DELETE). Called by Instance after resource operation performed by the USER. More...

Protected Member Functions inherited from wpp::Instance
void	notifyResChanged (ID_T resId, ID_T resInstId=ID_T_MAX_VAL)
	Notify server about resource value change. More...

std::vector< Resource * >	getInstantiatedResList ()
	This method return list with resources that has been instantiated. If resources does not exist then return empty list. More...

std::vector< Resource * >	getInstantiatedResList (const ItemOp &filter)

std::vector< Resource * >	getResList ()
	This method return list with all resources that has been defined. If resources does not exist then return empty list. More...

void	resourceOperationNotifier (ItemOp::TYPE type, ID_T resId, ID_T resInstId) override
	Handle information about resource operation (WRITE, DELETE). Called by ResourceContainer after resource operation performed. More...

Protected Member Functions inherited from wpp::InstSubject
void	operationNotify (Instance &inst, const ResLink &resLink, ItemOp::TYPE type)
	Notifies the observers about an operation on an instance resource. More...

void	eventNotify (Instance &inst, EVENT_ID_T eventId)
	Notifies the observers about a custom instance event. More...

Protected Member Functions inherited from wpp::ResourceContainer
void	setupResources (const std::vector< Resource > &resources)
	This methods setup resources list. More...

void	setupResources (std::vector< Resource > &&resources)

Resource *	resource (ID_T resId)
	This method return resource ptr if it exists. If resources does not exist then return NULL. More...

std::vector< Resource > &	resources ()
	This method return list with all resources that has been defined. More...

Detailed Description

Definition at line 29 of file Lwm2mAccessControl.h.

Member Enumeration Documentation

◆ ACL

enum wpp::Lwm2mAccessControl::ACL : uint8_t

Enumerator
NO_ACCESS
R_O_W_ATTR
WRITE
EXECUTE
DELETE
CREATE
ALL_OBJ_RIGHTS
ALL_INST_RIGHTS

Definition at line 42 of file Lwm2mAccessControl.h.

◆ ID

enum wpp::Lwm2mAccessControl::ID : ID_T

Enumerator
OBJECT_ID_0
OBJECT_INSTANCE_ID_1
ACL_2
ACCESS_CONTROL_OWNER_3

Definition at line 31 of file Lwm2mAccessControl.h.

Constructor & Destructor Documentation

◆ Lwm2mAccessControl()

wpp::Lwm2mAccessControl::Lwm2mAccessControl	(	lwm2m_context_t &	context,
		const OBJ_LINK_T &	id
	)

Definition at line 32 of file Lwm2mAccessControl.cpp.

◆ ~Lwm2mAccessControl()

wpp::Lwm2mAccessControl::~Lwm2mAccessControl ( )

Definition at line 45 of file Lwm2mAccessControl.cpp.

Here is the call graph for this function:

Member Function Documentation

◆ addAcl() [1/2]

static bool wpp::Lwm2mAccessControl::addAcl	(	Instance &	targetInst,
		ID_T	serverShortId,
		uint8_t	acl = `ALL_INST_RIGHTS`
	)

static

Add ACL for target object instance.

Parameters

targetInst	Target object instance
serverShortId	Server short ID
acl	ACL for target object instance, can be NO_ACCESS or ALL_INST_RIGHTS

◆ addAcl() [2/2]

static bool wpp::Lwm2mAccessControl::addAcl	(	Object &	targetObj,
		ID_T	serverShortId,
		uint8_t	acl = `ALL_OBJ_RIGHTS`
	)

static

Add ACL for target object.

Parameters

targetObj	Target object
serverShortId	Server short ID
acl	ACL for target object, can be NO_ACCESS or ALL_OBJ_RIGHTS

◆ create() [1/2]

Lwm2mAccessControl * wpp::Lwm2mAccessControl::create	(	Instance &	targetInst,
		ID_T	owner = `AC_CLIENT_OWNER`,
		uint8_t	defaultAcl = `NO_ACCESS`
	)

static

Get Lwm2mAccessControl object instance for target object instance.

Parameters

owner	Target object instance owner, should be set to AC_CLIENT_OWNER or server short id
defaultAcl	Default ACL for target object, can be NO_ACCESS or ALL_INST_RIGHTS

Definition at line 181 of file Lwm2mAccessControl.cpp.

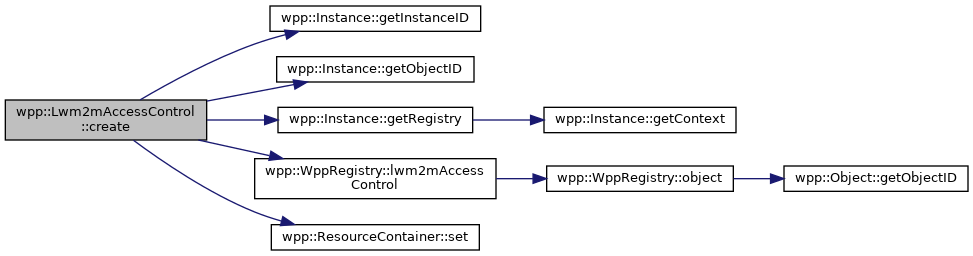

Here is the call graph for this function:

◆ create() [2/2]

Lwm2mAccessControl * wpp::Lwm2mAccessControl::create	(	Object &	targetObj,
		uint8_t	defaultAcl = `NO_ACCESS`
	)

static

Create Lwm2mAccessControl object instance for target object.

Parameters

targetObj	Target object
defaultAcl	Default ACL for target object, can be NO_ACCESS or ALL_OBJ_RIGHTS

Definition at line 132 of file Lwm2mAccessControl.cpp.

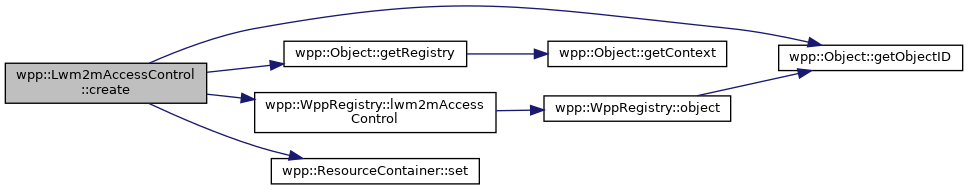

Here is the call graph for this function:

◆ createInst()

Lwm2mAccessControl * wpp::Lwm2mAccessControl::createInst	(	WppClient &	ctx,
		ID_T	instId = `ID_T_MAX_VAL`
	)

static

Creates an instance of the object.

Parameters

ctx	- WppClient context
instanceID	The instance ID.

Returns: A pointer to the created Instance object or NULL.

Definition at line 61 of file Lwm2mAccessControl.cpp.

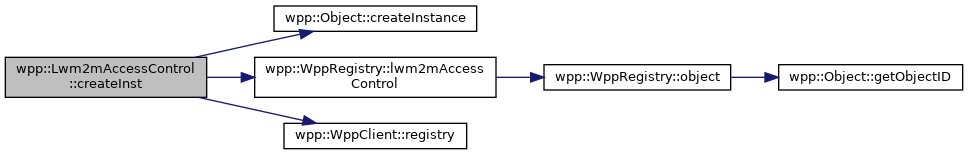

Here is the call graph for this function:

◆ instance()

Lwm2mAccessControl * wpp::Lwm2mAccessControl::instance	(	WppClient &	ctx,
		ID_T	instId = `ID_T_MAX_VAL`
	)

static

Gets an instance of the object.

Parameters

ctx	- WppClient context.
instId	The instance ID. If not provided, the first available instance is returned.

Returns: A pointer to the Instance object or NULL.

Definition at line 55 of file Lwm2mAccessControl.cpp.

Here is the call graph for this function:

◆ object()

Object & wpp::Lwm2mAccessControl::object ( WppClient & ctx )

static

Gets the Object reference.

Parameters

ctx	- WppClient context.

Returns: A reference to the Object.

Definition at line 51 of file Lwm2mAccessControl.cpp.

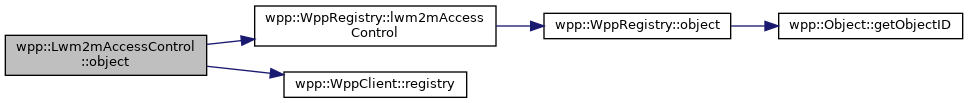

Here is the call graph for this function:

◆ remove() [1/2]

void wpp::Lwm2mAccessControl::remove ( Instance & targetInst )

static

Delete Lwm2mAccessControl object instance for target object instance.

Parameters

targetInst Target object instance

Definition at line 199 of file Lwm2mAccessControl.cpp.

Here is the call graph for this function:

◆ remove() [2/2]

void wpp::Lwm2mAccessControl::remove ( Object & targetObj )

static

Delete Lwm2mAccessControl object instance for target object.

Parameters

targetObj Target object

Definition at line 150 of file Lwm2mAccessControl.cpp.

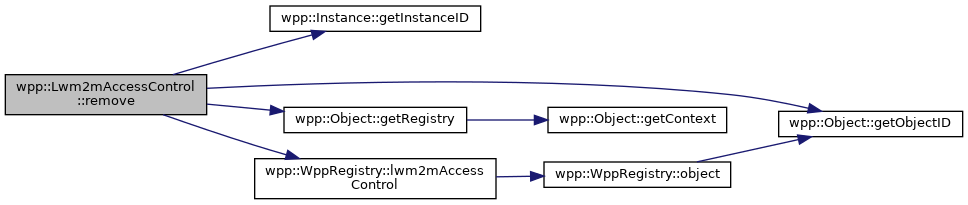

Here is the call graph for this function:

◆ removeAcl() [1/2]

static void wpp::Lwm2mAccessControl::removeAcl	(	Instance &	targetInst,
		ID_T	serverShortId
	)

static

Remove ACL for target object instance.

Parameters

targetInst	Target object instance
serverShortId	Server short ID

◆ removeAcl() [2/2]

static void wpp::Lwm2mAccessControl::removeAcl	(	Object &	targetObj,
		ID_T	serverShortId
	)

static

Remove ACL for target object.

Parameters

targetObj	Target object
serverShortId	Server short ID

◆ removeInst()

bool wpp::Lwm2mAccessControl::removeInst	(	WppClient &	ctx,
		ID_T	instId
	)

static

Removes an instance of the object.

Parameters

ctx	- WppClient context.
instId	The instance ID.

Returns: True if the instance was successfully removed, false otherwise.

Definition at line 67 of file Lwm2mAccessControl.cpp.

Here is the call graph for this function:

◆ serverOperationNotifier()

void wpp::Lwm2mAccessControl::serverOperationNotifier	(	Instance *	securityInst,
		ItemOp::TYPE	type,
		const ResLink &	resLink
	)

overrideprotectedvirtual

This method must be implemented by the derived class, and handle information about resource operation (WRITE, EXECUTE). Called by Instance after resource operation performed by SERVER if the operation is
WRITE, if the operation is EXECUTE then called before this operation. When the EXECUTE operation, the handler that was set before the serverOperationNotifier() call is used.

Parameters

securityInst - Contains security instance when the request received from the server or NULL if the request is initiated by the core.

Implements wpp::Instance.

Definition at line 71 of file Lwm2mAccessControl.cpp.

Here is the call graph for this function:

◆ userOperationNotifier()

void wpp::Lwm2mAccessControl::userOperationNotifier	(	ItemOp::TYPE	type,
		const ResLink &	resLink
	)

overrideprotectedvirtual

This method must be implemented by the derived class, and handle information about resource operation (WRITE, DELETE). Called by Instance after resource operation performed by the USER.

Implements wpp::Instance.

Definition at line 82 of file Lwm2mAccessControl.cpp.

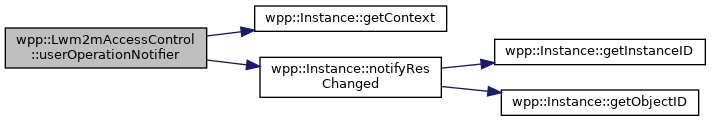

Here is the call graph for this function:

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Detailed Description

Member Enumeration Documentation

◆ ACL

◆ ID

Constructor & Destructor Documentation

◆ Lwm2mAccessControl()

◆ ~Lwm2mAccessControl()

Member Function Documentation

◆ addAcl() [1/2]

◆ addAcl() [2/2]

◆ create() [1/2]

◆ create() [2/2]

◆ createInst()

◆ instance()

◆ object()

◆ remove() [1/2]

◆ remove() [2/2]

◆ removeAcl() [1/2]

◆ removeAcl() [2/2]

◆ removeInst()

◆ serverOperationNotifier()

◆ userOperationNotifier()
